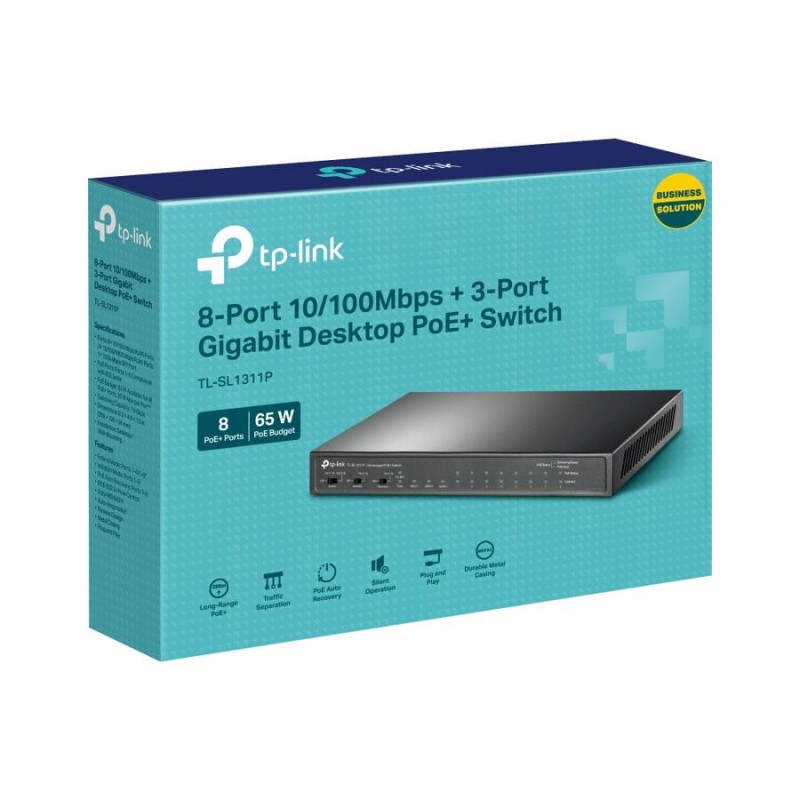

TP-Link TL-SL1311P Switch Unmanaged dengan 8 Port PoE+ dan 2 Port Gigabit Uplink

Ports: 8 x 10/100 Mbps RJ45 Ports (AUTO Negotiation/AUTO MDI/MDIX) - All 8 ports support PoE+. 2 x 10/100/1000 Mbps RJ45 Ports (Gigabit Uplinks). 1 x Combo Gigabit SFP Port (shared with one of the Gigabit RJ45 ports for flexible fiber or copper uplinks).
PoE+ Ports: 8 ports (Port 1 to Port 8) are IEEE 802.3af/at compliant.
Total PoE Power Budget: 65W.
PoE Power per Port: Up to 30W per port.
Fan Quantity: Fanless (for silent operation).
Physical Security Lock: Yes (Kensington lock slot).
Dimensions (W x D x H): 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm).
Mounting: Desktop or Wall-Mounting.
Power Supply: External Power Adapter (Output: typically 53.5 VDC / 1.31 A).
Max. Power Consumption: No PD connected: ~5.61 W (at 220V/50Hz). With full 65W PD load: ~77.32 W (at 110V/50Hz) - Note: Power consumption varies with voltage and load.
Max. Heat Dissipation: No PD connected: ~19.13 BTU/h. With full 65W PD load: ~263.7 BTU/h.
Performance:

Switching Capacity: 7.6 Gbps.
Packet Forwarding Rate: 5.6544 Mpps.
MAC Address Table: 2K entries.
Jumbo Frame: 16 KB.
Transmission Method: Store-And-Forward.
Software Features (Unmanaged with Advanced Functions):
As an unmanaged switch, it doesn't have a web GUI or CLI for complex configurations. However, it incorporates several useful, often one-click, features that are internally controlled:

Compatible With IEEE 802.3af/at Compliant PDs: Ensures broad compatibility with standard PoE and PoE+ powered devices.
Extend Mode Button: (Applicable to Ports 1–4 and/or Ports 1–8, depending on the specific version/configuration via a DIP switch). This allows for PoE power supply and data transmission up to 250 meters, by typically reducing the port speed to 10 Mbps. This is a significant feature for long-distance IP camera deployments.
Isolation Mode Button: (Applicable to Ports 1–8). Allows one-click client traffic separation for higher security and performance. This isolates ports from each other, preventing devices on different ports from seeing each other's traffic and mitigating broadcast storms.
PoE Auto Recovery Button: (Applicable to Ports 1–8). Automatically detects unresponsive PoE-powered devices (e.g., a frozen IP camera or access point) and reboots them, improving system stability and reducing manual troubleshooting.
Intelligent Power Management / Priority Function: If the total power consumption from PoE devices exceeds 65W, the switch will prioritize power delivery to higher-priority ports (typically lower-numbered ports like Port 1, then Port 2, etc.) to ensure critical devices remain powered.
MAC Address Auto-Learning and Auto-Aging: Standard switch functions for efficient MAC address table management.
IEEE 802.3x Flow Control: For reliable data transmission in both full-duplex and half-duplex modes.
Standards and Protocols:

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
