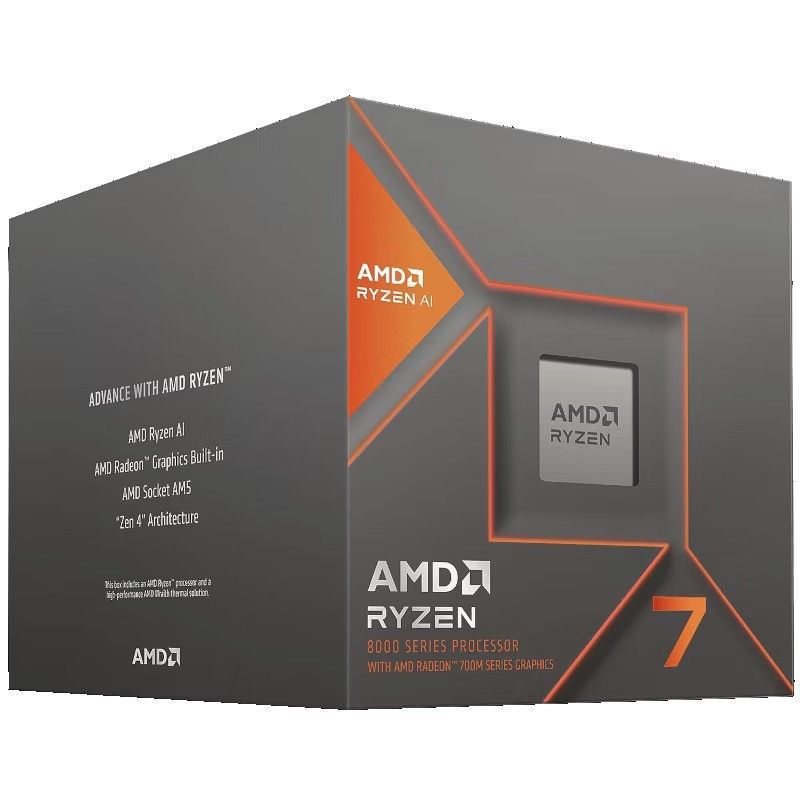

AMD RYZEN 7 8700G (Socket AM5)

General Specifications
Platform Desktop
Product Family AMD Ryzen Processors
Product Line AMD Ryzen 7 8000 G-Series Desktop Processors with Radeon Graphics
AMD PRO Technologies No
Consumer Use Yes
Regional Availability Global
Former Codename "Phoenix"
Architecture "Zen4"
#of CPU Cores 6
Multithreading (SMT) Yes
#of Threads 16
Max. Boost Clock Up to 5.1GHz
Base Clock 4.2GHz
L2 Cache 8MB
L3 Cache 16MB
Default TDP 65W
AMD Configurable TDP (cTDP) 45-65W
Processor Technology for CPU Cores TSMC 4nm FinFET
CPU Compute Die (CCD) Size 178mm²
Package Die Count 1
AMD EXPO Memory Overclocking Technology Yes
Precision Boost Overdrive Yes
Curve Optimizer Voltage Offsets Yes
AMD Ryzen Master Support Yes
CPU Socket AM5
CPU Boost Technology Precision Boost 2
Instruction Set x86-64
Supported Extensions AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Max. Operating Temperature (Tjmax) 95°C

Connectivity
Native USB 4 (40Gbps) Ports 2
Native USB 3.2 Gen 2 (10Gbps) Ports 2
Native USB 2.0 (480Mbps) Ports 1
PCI Express Version PCIe 4.0
Native PCIe Lanes (Total/Usable) 20 / 16
NVMe Support Boot, RAID0, RAID1
System Memory Type DDR5
Memory Channels 2
Max. Memory 256GB
System Memory Subtype UDIMM

Graphics Capabilities
Integrated Graphics Yes
Graphics Model AMD Radeon 780M
Graphics Core Count 12
Graphics Frequency 2900 MHz
DirectX Version 12
DisplayPort Version 2.1
HDMI Version 2.1
HDCP Version Supported 2.3
USB Type-C DisplayPort Alternate Mode Yes
Multi-Monitor Support Yes
Max Displays 4
AMD FreeSync Yes
Wireless Display Miracast
AMD SmartAccess Memory Yes
